3057P-1-103 | Bourns Electronics GmbH

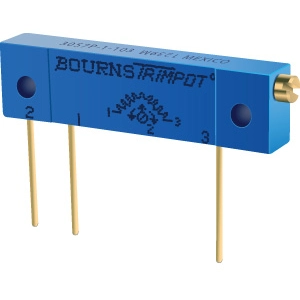

Trimmer potentiometer, 22 turns, 10 kΩ, 1 W, THT, lateral, 3057P-1-103
Order No.: 78E1300
EAN: 4099879899880
MPN:
3057P-1-103
Unit Price (€ / pc.)
28.2387 € *
Standard delivery time from the manufacturer is: 9 Weeks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±50 ppm/K | |
| max. number of revolutions | 22 | |
| Contact distance | RM 2.54 | |
| Connection | solder pin | |
| Tolerance | ±5 % | |
| Seeting | lateral | |
| Track Taper | linear | |
| ohmic resistance | 10 kΩ | |
| Power | 1 W | |
| Width | 4.83 mm | |
| Height | 8 mm | |
| Assembly | THT | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | trimmer potentiometer | |
| Rotary range, electrical | 7920 ° | |
| Length | 31.75 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | MX |
| MSL | MSL 2 |
| Original Packaging | Bar with 20 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
