PWR4525W22R0JE | Bourns Electronics GmbH
Resistor, wirewound, SMD 4525, 22 Ω, 2 W, ±5 %, PWR4525W22R0JE
Order No.: 07E7696
EAN: 4099879197061
MPN:
PWR4525W22R0JE
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: 20 Weeks **

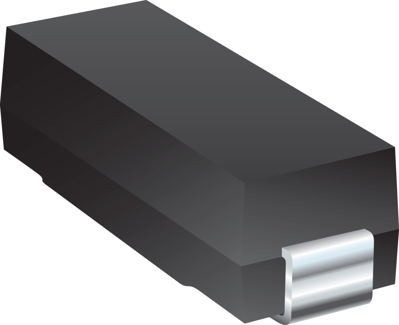

SMD Wirewound resistor, PWR4525W22R0JE, Bourns
Resistor, Wirewound, SMD 4525, 22 Ω, 2 W, ±5 %
Features
- Surface mount wirewound resistor
- High power
- Low temperature coefficient
- RoHS compliant
Technical specifications
| Temperature coefficient | ±20 ppm/K | |
| Technology | wirewound | |
| Height | 4.6 mm | |
| Power | 2 W | |
| Length | 11.4 mm | |
| Design | SMD 4525 | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| max. operating temperature | 275 °C | |
| ohmic resistance | 22 Ω |
Download
Logistics
| Customs tariff number | 85332900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
