PWR2010WR500FE | Bourns Electronics GmbH
Resistor, wirewound, SMD 2010 (5025), 500 mΩ, 0.5 W, ±1 %, PWR2010WR500FE
Order No.: 07E6894
EAN: 4099879192240
MPN:
PWR2010WR500FE
Unit Price (€ / pc.)
0.8568 € *
Standard delivery time from the manufacturer is: 20 Weeks

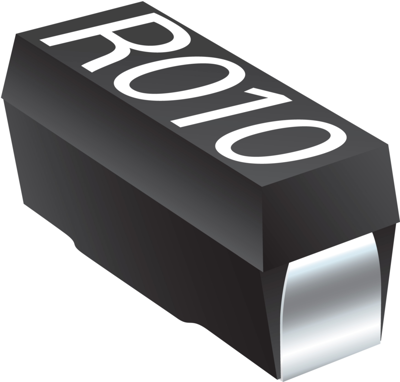

SMD Wirewound resistor, PWR2010WR500FE, Bourns
Resistor, Wirewound, SMD 2010, 500 mΩ, 0.5 W, ±1 %
Features
- Large terminals and optimized body shape for power dissipation
- Excellent surge capabilities
- Low TCR
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±90 ppm/K | |
| Technology | wirewound | |
| Width | 2.5 mm | |
| Height | 3.25 mm | |
| Power | 0.5 W | |
| Length | 5.08 mm | |
| Design | SMD 2010 (5025) | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 155 °C | |
| ohmic resistance | 500 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
