CST0612-FC-R001E | Bourns Electronics GmbH

Name: Resistor, metal alloy, SMD 0612, 1 mΩ, 1 W, ±1 %, CST0612-FC-R001E
Brand: Bourns Electronics GmbH
SKU: 07E4778
Availability: InStock

Resistor, metal alloy, SMD 0612, 1 mΩ, 1 W, ±1 %, CST0612-FC-R001E

Order No.: 07E4778

EAN: 4099879189936

MPN:

CST0612-FC-R001E

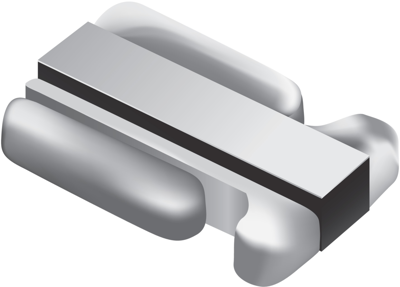

Image may differ

Key Specification:

ohmic resistance 1 mΩ

Tolerance ±1 %

Power 1 W

Design SMD 0612

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.4760 € *

Standard delivery time from the manufacturer is: 18 Weeks

Total Price:

1,904.00 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CST0612-FC-R001E, BOURNS

The CST0612-FC-R001E is a current sensing resistor with four terminal design.

Features

Low inductance <5 nH
Low thermal EMF
Metal alloy strip
RoHS compliant

Applications

Precision circuits
Medical equipment
Automation equipment
Navigation equipment

Technical specifications

Filter	Property	Value
	Temperature coefficient	±200 ppm/K
	Technology	metal alloy
	Tolerance	±1 %
	Design	SMD 0612
	ohmic resistance	1 mΩ
	Power	1 W
	Width	1.65 mm
	Height	0.65 mm
	max. operating temperature	170 °C
	min. operating temperature	-55 °C
	Length	3.05 mm
