CSS4J-4026R-L500F | Bourns Electronics GmbH

Name: Resistor, metal strip, SMD 4026, 500 µΩ, 5 W, ±1 %, CSS4J-4026R-L500F
Brand: Bourns Electronics GmbH
SKU: 07E4773
Availability: InStock

Resistor, metal strip, SMD 4026, 500 µΩ, 5 W, ±1 %, CSS4J-4026R-L500F

Order No.: 07E4773

EAN: 4099879189882

MPN:

CSS4J-4026R-L500F

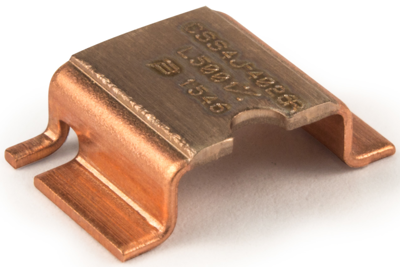

Image may differ

Key Specification:

ohmic resistance 500 µΩ

Tolerance ±1 %

Power 5 W

Design SMD 4026

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.8925 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

2,677.50 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CSS4J-4026R-L500F, BOURNS

The CSS4J-4026R-L500F is a current sensing resistor with an excellent long term stability.

Features

EB welded metal strip
Very high power
Low resistance, low TCR
Low thermal EMF
RoHS compliant

Applications

Voltage division
Battery management systems
Power modules
Frequency converters

Technical specifications

Filter	Property	Value
	Temperature coefficient	±50 ppm/K
	Technology	metal strip
	Height	3.01 mm
	Power	5 W
	Length	10.06 mm
	Design	SMD 4026
	min. operating temperature	-55 °C
	Tolerance	±1 %
	max. operating temperature	170 °C
	ohmic resistance	500 µΩ
