CSS2H-5930R-L500FE | Bourns Electronics GmbH

Name: Resistor, metal alloy, SMD 5931, 500 µΩ, 8 W, ±1 %, CSS2H-5930R-L500FE
Brand: Bourns Electronics GmbH
SKU: 07E4768
Availability: InStock

Resistor, metal alloy, SMD 5931, 500 µΩ, 8 W, ±1 %, CSS2H-5930R-L500FE

Order No.: 07E4768

EAN: 4099879189837

MPN:

CSS2H-5930R-L500FE

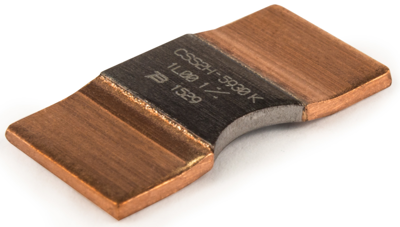

Image may differ

Key Specification:

ohmic resistance 500 µΩ

Tolerance ±1 %

Power 8 W

Design SMD 5931

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.0234 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

1,023.40 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CSS2H-5930R-L500FE, BOURNS

The CSS2H-5930R-L500FE is a current sensing resistor with an excellent long term stability.

Features

EB welded metal strip
Very high power
Low resistance, low TCR
Low thermal EMF
RoHS compliant

Technical specifications

Filter	Property	Value
	Height	1.1 mm
	min. operating temperature	-55 °C
	max. operating temperature	170 °C
	Power	8 W
	Tolerance	±1 %
	Temperature coefficient	±50 ppm/K
	Technology	metal alloy
	Design	SMD 5931
	Length	15 mm
	ohmic resistance	500 µΩ
