CSS2H-5930K-1L00FE | Bourns Electronics GmbH

Name: Resistor, metal alloy, SMD 5931, 1 mΩ, 9 W, ±1 %, CSS2H-5930K-1L00FE
Brand: Bourns Electronics GmbH
SKU: 07E4762
Availability: InStock

Resistor, metal alloy, SMD 5931, 1 mΩ, 9 W, ±1 %, CSS2H-5930K-1L00FE

Order No.: 07E4762

EAN: 4099879189776

MPN:

CSS2H-5930K-1L00FE

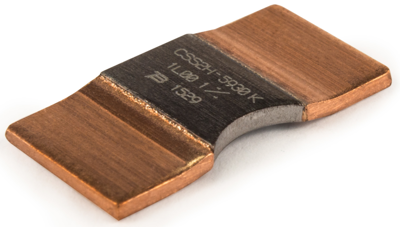

Image may differ

Key Specification:

ohmic resistance 1 mΩ

Tolerance ±1 %

Power 9 W

Design SMD 5931

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.1186 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

1,118.60 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CSS2H-5930K-1L00FE, BOURNS

The CSS2H-5930K-1L00FE is a current sensing resistor with an excellent long term stability.

Features

EB welded metal strip
Very high power
Low resistance, low TCR
Low thermal EMF
RoHS compliant

Technical specifications

Filter	Property	Value
	Temperature coefficient	±50 ppm/K
	Technology	metal alloy
	Height	1.42 mm
	Power	9 W
	Length	15 mm
	Design	SMD 5931
	min. operating temperature	-55 °C
	Tolerance	±1 %
	max. operating temperature	170 °C
	ohmic resistance	1 mΩ
