CSS2H-3920R-L200FE | Bourns Electronics GmbH

Name: Resistor, metal strip, SMD 3920, 200 µΩ, 12 W, ±1 %, CSS2H-3920R-L200FE
Brand: Bourns Electronics GmbH
SKU: 07E4756
Availability: InStock

Resistor, metal strip, SMD 3920, 200 µΩ, 12 W, ±1 %, CSS2H-3920R-L200FE

Order No.: 07E4756

EAN: 4099879189707

MPN:

CSS2H-3920R-L200FE

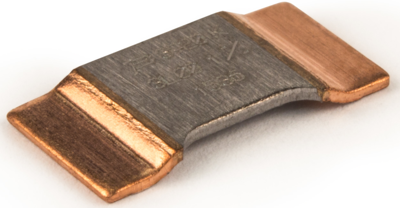

Image may differ

Key Specification:

ohmic resistance 200 µΩ

Tolerance ±1 %

Power 12 W

Design SMD 3920

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.2138 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

1,213.80 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CSS2H-3920R-L200FE, BOURNS

The CSS2H-3920R-L200FE is a current sensing resistor with an excellent long term stability.

Features

EB welded metal strip
Very high power
Low resistance, low TCR
Low thermal EMF
RoHS compliant

Technical specifications

Filter	Property	Value
	Temperature coefficient	±50 ppm/K
	Technology	metal strip
	Tolerance	±1 %
	Design	SMD 3920
	ohmic resistance	200 µΩ
	Power	12 W
	Height	2.5 mm
	max. operating temperature	170 °C
	min. operating temperature	-55 °C
	Length	10 mm
