CSS2H-3920R-1L00F | Bourns Electronics GmbH

Name: Resistor, metal strip, SMD 3920, 1 mΩ, 8 W, ±1 %, CSS2H-3920R-1L00F
Brand: Bourns Electronics GmbH
SKU: 07E4753
Availability: InStock

Resistor, metal strip, SMD 3920, 1 mΩ, 8 W, ±1 %, CSS2H-3920R-1L00F

Order No.: 07E4753

EAN: 4099879189677

MPN:

CSS2H-3920R-1L00F

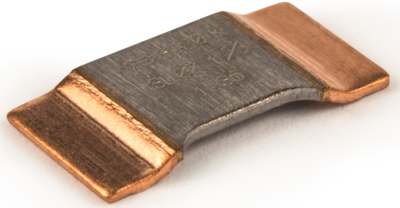

Image may differ

Key Specification:

ohmic resistance 1 mΩ

Tolerance ±1 %

Power 8 W

Design SMD 3920

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.6545 € *

Standard delivery time from the manufacturer is: 12 Weeks

Total Price:

3,927.00 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CSS2H-3920R-1L00F, BOURNS

The CSS2H-3920R-1L00F is a current sensing resistor with an excellent long term stability.

Features

EB welded metal strip
Very high power
Low resistance, low TCR
Low thermal EMF
RoHS compliant

Technical specifications

Filter	Property	Value
	Temperature coefficient	±50 ppm/K
	Technology	metal strip
	Tolerance	±1 %
	Design	SMD 3920
	ohmic resistance	1 mΩ
	Power	8 W
	Height	0.92 mm
	max. operating temperature	170 °C
	min. operating temperature	-55 °C
	Length	10 mm
