CSS2H-3920K-3L00FE | Bourns Electronics GmbH

Name: Resistor, metal strip, SMD 3920, 3 mΩ, 5 W, ±1 %, CSS2H-3920K-3L00FE
Brand: Bourns Electronics GmbH
SKU: 07E4752
Availability: InStock

Resistor, metal strip, SMD 3920, 3 mΩ, 5 W, ±1 %, CSS2H-3920K-3L00FE

Order No.: 07E4752

EAN: 4099879189660

MPN:

CSS2H-3920K-3L00FE

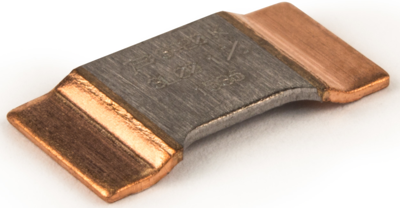

Image may differ

Key Specification:

ohmic resistance 3 mΩ

Tolerance ±1 %

Power 5 W

Design SMD 3920

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.8925 € *

Standard delivery time from the manufacturer is: 13 Weeks

Total Price:

892.50 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CSS2H-3920K-3L00FE, BOURNS

The CSS2H-3920K-3L00FE is a current sensing resistor with an excellent long term stability.

Features

EB welded metal strip
Very high power
Low resistance, low TCR
Low thermal EMF
RoHS compliant

Technical specifications

Filter	Property	Value
	Height	0.96 mm
	min. operating temperature	-55 °C
	max. operating temperature	170 °C
	Power	5 W
	Tolerance	±1 %
	Temperature coefficient	±50 ppm/K
	Technology	metal strip
	Design	SMD 3920
	Length	10 mm
	ohmic resistance	3 mΩ
