CRL0603-JW-R470ELF | Bourns Electronics GmbH
Resistor, thick film, SMD 0603 (1608), 470 mΩ, 0.1 W, ±5 %, CRL0603-JW-R470ELF
Unit Price (€ / pc.)
0.0345 € *
Standard delivery time from the manufacturer is: 18 Weeks

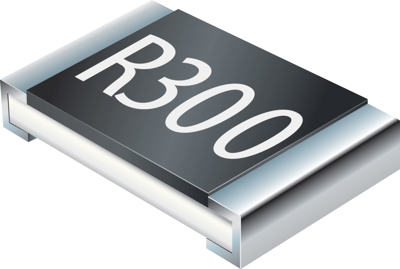

SMD Thick film resistor, CRL0603-JW-R470ELF, Bourns
Resistor, Thick film, SMD 0603, 470 mΩ, 0.1 W, ±5 %
Features
- Values from 0.02 to 9.10 ohms
- Tape and reel packaging
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±200 ppm/K | |
| Technology | thick film | |
| Tolerance | ±5 % | |
| Design | SMD 0603 (1608) | |
| ohmic resistance | 470 mΩ | |
| Power | 0.1 W | |
| Width | 0.8 mm | |
| Height | 0.45 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Length | 1.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | TW |
| MSL | MSL 1 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
