CR0603-FX-11R8ELF | Bourns Electronics GmbH

Name: Resistor, thick film, SMD 0603 (1608), 11.8 Ω, 0.1 W, ±1 %, CR0603-FX-11R8ELF
Brand: Bourns Electronics GmbH
SKU: 06E9210
Price: 0.01 EUR
Availability: OutOfStock

Resistor, thick film, SMD 0603 (1608), 11.8 Ω, 0.1 W, ±1 %, CR0603-FX-11R8ELF

Order No.: 06E9210

EAN: 4099879160164

MPN:

CR0603-FX-11R8ELF

Series: CR0603

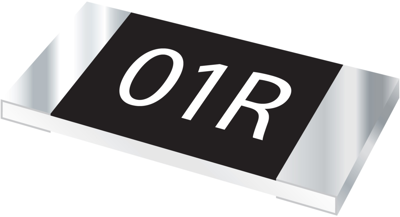

Image may differ

Key Specification:

ohmic resistance 11.8 Ω

Tolerance ±1 %

Power 0.1 W

Design SMD 0603 (1608)

Show 574 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0098 € *

Available: 0 pcs.

Leadtime: 11 Weeks **

Add to Cart

Total Price:

0.01 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

SMD Thick film resistor, CR0603-FX-11R8ELF, Bourns

Features

RoHS compliant
Tight tolerances of bottom electrode width
Suitable for all types of soldering processes
Paper tape on reel for automatic placement

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	TW
Customs tariff number	85332100
MSL	MSL 1
Original Packaging	Reel with 5,000 pieces

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
