CFN0805-FX-R020ELF | Bourns Electronics GmbH

Name: Resistor, metal foil, SMD 0805 (2012), 20 mΩ, 0.5 W, ±1 %, CFN0805-FX-R020ELF
Brand: Bourns Electronics GmbH
SKU: 11E958
Availability: InStock

Resistor, metal foil, SMD 0805 (2012), 20 mΩ, 0.5 W, ±1 %, CFN0805-FX-R020ELF

Order No.: 11E958

EAN: 4099879207814

MPN:

CFN0805-FX-R020ELF

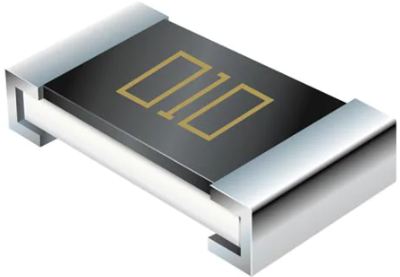

Image may differ

Key Specification:

ohmic resistance 20 mΩ

Tolerance ±1 %

Power 0.5 W

Design SMD 0805 (2012)

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1369 € *

Standard delivery time from the manufacturer is: 18 Weeks

Total Price:

1,094.80 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Metal foil, CFN0805-FX-R020ELF, BOURNS

Metal foil, Current sense resistor.

Features

High power density
High reliability and stability
RoHS compliant

Applications

Current sensing
Power supplies
Stepper motor drives
Input amplifiers

Technical specifications

Filter	Property	Value
	ohmic resistance	20 mΩ
	Temperature coefficient	±100 ppm/K
	max. operating temperature	155 °C
	Technology	metal foil
	Length	2 mm
	Design	SMD 0805 (2012)
	Power	0.5 W
	min. operating temperature	-55 °C
	Tolerance	±1 %
	Width	1.2 mm
	Height	0.7 mm
