CFG0612-FX-R010ELF | Bourns Electronics GmbH

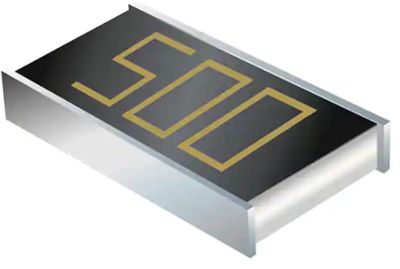

Name: Resistor, metal foil, SMD 0612, 10 mΩ, 1 W, ±1 %, CFG0612-FX-R010ELF
Brand: Bourns Electronics GmbH
SKU: 11E957
Availability: InStock

Resistor, metal foil, SMD 0612, 10 mΩ, 1 W, ±1 %, CFG0612-FX-R010ELF

Order No.: 11E957

EAN: 4099879207807

MPN:

CFG0612-FX-R010ELF

Image may differ

Key Specification:

ohmic resistance 10 mΩ

Tolerance ±1 %

Power 1 W

Design SMD 0612

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1595 € *

Standard delivery time from the manufacturer is: 18 Weeks

Total Price:

1,275.68 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Resistor, CFG0612-FX-R010ELF, Bourns

CFG metal foil, wide terminal current sense resistor.

Features

Excellent heat dissipation
High reliability
Low inductance
Wide terminal type

Technical specifications

Filter	Property	Value
	ohmic resistance	10 mΩ
	Temperature coefficient	±100 ppm/K
	max. operating temperature	155 °C
	Technology	metal foil
	Length	3.2 mm
	Design	SMD 0612
	Power	1 W
	min. operating temperature	-55 °C
	Tolerance	±1 %
	Width	1.65 mm
	Height	0.7 mm
