CD0603-B0240R | Bourns Electronics GmbH
Schottky rectifier diode, 40 V (RRM), 200 mA, SMD 0603, CD0603-B0240R
Unit Price (€ / pc.)
0.0583 € *
Standard delivery time from the manufacturer is: 20 Weeks

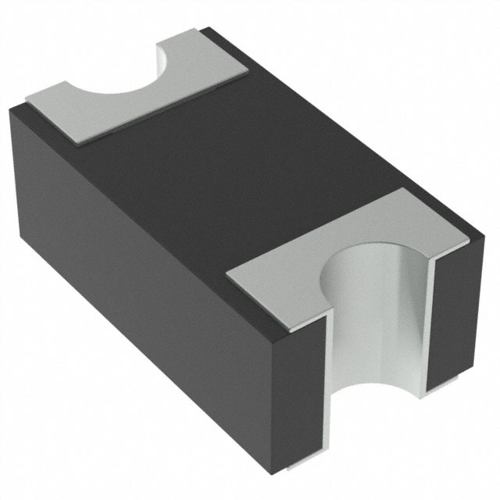

Schottky Barrier Chip Diode, CD0603-B0240R, Bourns
Features
- RoHS compliant
- Leadless chip form
- High current capability
- Low forward voltage
- Halogen free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 125 °C | |
| Forward Current | 200 mA | |
| max. operating temperature | 125 °C | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Capacity | 35 pF | |
| Assembly | SMD | |
| min. operating temperature | -40 °C | |
| Enclosure | SMD 0603 | |
| Junction temperature (min.) | -40 °C | |
| Version | schottky rectifier diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
