4611X-101-472LF | Bourns Electronics GmbH
Resistor network, SIP-11, 4.7 kΩ, 0.2 W, ±2 %, 10 resistors, 4611X-101-472LF
Unit Price (€ / pc.)
0.5474 € *
Available: 1,530 pcs.
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5474 €
50 pcs.
0.4760 €
250 pcs.
0.4046 €
1000 pcs.
0.3689 €
2000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
Resistance networks, type Bourns 4600X.

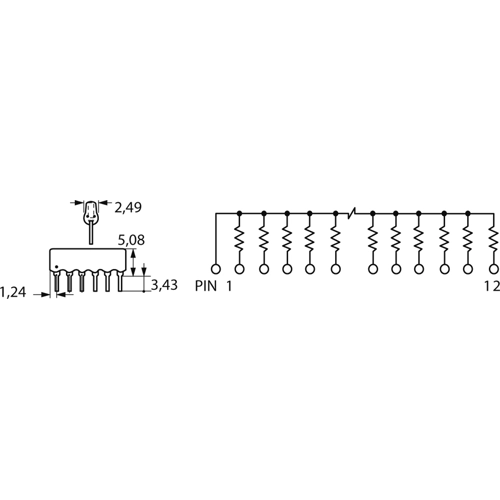

Thickfilm, SiL (Single-in-Line) resistors (same value), interconnected, common connection (bussed resistors)
With 10 resistors, 11-pole, type 4611X-101-RC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 4.7 kΩ | |
| Width | 2.49 mm | |
| Enclosure | SIP-11 | |
| Tolerance | ±2 % | |
| Temperature coefficient | ±100 ppm/°C | |
| max. operating temperature | 125 °C | |
| Power | 0.2 W | |
| Assembly | THT | |
| Number of resistors | 10 | |
| Height | 5.08 mm | |
| Length | 27.89 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 100 pieces |
| Country of origin | JP |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
