4610X-102-331LF | Bourns Electronics GmbH
Resistor network, SIP-10, 330 Ω, 0.3 W, ±2 %, 5 resistors, 4610X-102-331LF
Order No.: 91E310
EAN: 4099879760425
MPN:
4610X-102-331LF
Unit Price (€ / pc.)
0.2083 € *
Available: 0 pcs.
Leadtime: 19 Weeks **

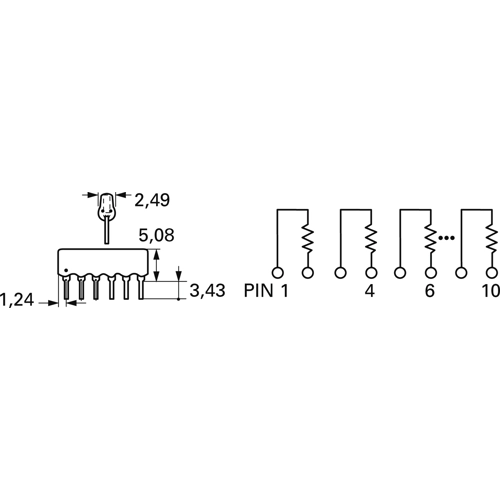

Resistance networks, type Bourns 4600X.
Thickfilm, SiL (Single-in-Line) resistors, not interconnected, separately insulated, all resistors of the same value and with separate connection (isolated resistors); Operating temperatures: –55 to +125 °C. Operating voltage: max. 100 V. Load rating per resistor at +70 °C: 0.30 W. Tolerance: ±2.0 % (to 47 ohm ±1.0 ohm). Temperature coefficient: ±100 (to 47 ohm ±250). Grid: 2.54 mm.
With 5 resistors, 10-pole, type 4610X-102-RC.
Type: 330R
Technical specifications
| Temperature coefficient | ±100 ppm/°C | |
| Assembly | THT | |
| Enclosure | SIP-10 | |
| Width | 2.49 mm | |
| Height | 5.08 mm | |
| Power | 0.3 W | |
| Length | 25.35 mm | |
| Number of resistors | 5 | |
| Tolerance | ±2 % | |
| max. operating temperature | 125 °C | |
| ohmic resistance | 330 Ω |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85332100 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
