4309R-101-103LF | Bourns Electronics GmbH

Name: Resistor network, SIP-9, 10 kΩ, 200 mW, ±2 %, 8 resistors, 4309R-101-103LF
Brand: Bourns Electronics GmbH
SKU: 06E3327
Availability: InStock

Resistor network, SIP-9, 10 kΩ, 200 mW, ±2 %, 8 resistors, 4309R-101-103LF

Order No.: 06E3327

EAN: 4099879720986

MPN:

4309R-101-103LF

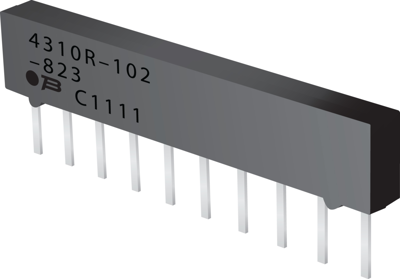

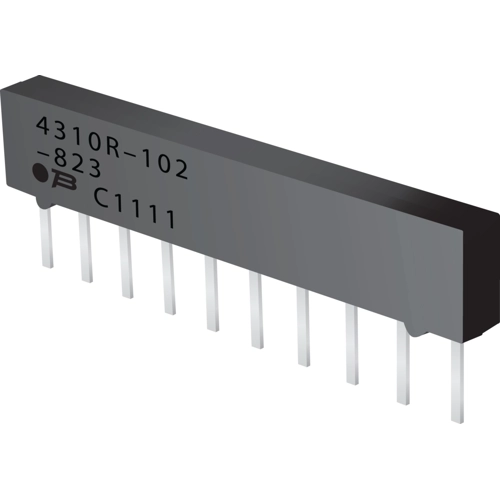

Image may differ

Key Specification:

ohmic resistance 10 kΩ

Tolerance ±2 %

Power 200 mW

Assembly THT

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.1658 € *

Standard delivery time from the manufacturer is: 11 Weeks

Total Price:

4,335.93 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Number of resistors	8
	Length	22.45 mm
	Width	2.16 mm
	ohmic resistance	10 kΩ
	max. operating temperature	125 °C
	Height	4.95 mm
	Power	200 mW
	Enclosure	SIP-9
	Tolerance	±2 %
	Assembly	THT
	Temperature coefficient	±100 ppm/°C
