4306R-102-105LF | Bourns Electronics GmbH

Name: Resistor network, SIP-6, 1 MΩ, 300 mW, ±2 %, 3 resistors, 4306R-102-105LF
Brand: Bourns Electronics GmbH
SKU: 06E2630
Availability: InStock

Resistor network, SIP-6, 1 MΩ, 300 mW, ±2 %, 3 resistors, 4306R-102-105LF

Order No.: 06E2630

EAN: 4099879714664

MPN:

4306R-102-105LF

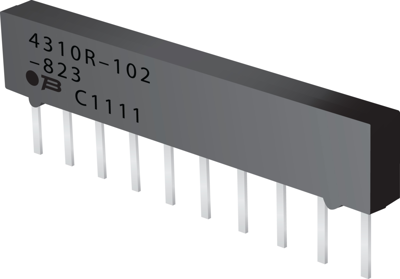

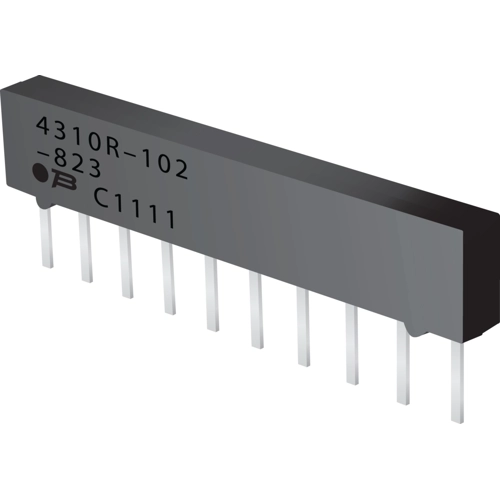

Image may differ

Key Specification:

ohmic resistance 1 MΩ

Tolerance ±2 %

Power 300 mW

Assembly THT

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.2729 € *

Standard delivery time from the manufacturer is: 11 Weeks

Total Price:

4,613.99 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Technical specifications

Filter	Property	Value
	Number of resistors	3
	Length	14.83 mm
	Width	2.16 mm
	ohmic resistance	1 MΩ
	max. operating temperature	125 °C
	Height	4.95 mm
	Power	300 mW
	Enclosure	SIP-6
	Tolerance	±2 %
	Assembly	THT
	Temperature coefficient	±100 ppm/°C
