4116R-1-105LF | Bourns Electronics GmbH
Resistor network, DIP-16, 1 MΩ, 0.25 W, ±2 %, 8 resistors, 4116R-1-105LF
Order No.: 88E990
EAN: 4099879759801
MPN:
4116R-1-105LF
Unit Price (€ / pc.)
1.3804 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Resistance networks, type Bourns 4100R.
Thickfilm, DiL (Dual-in-Line) resistors, not interconnected, separately insulated, all resistors of the same value and with separate connection (isolated resistors)
With 8 resistors, 16-pole, type 4116R-001-RC.

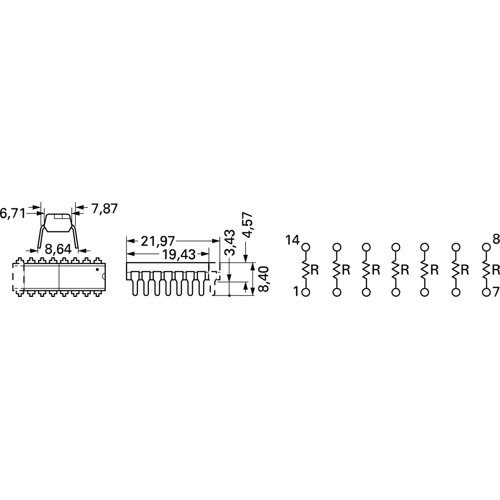

Technical specifications
| Temperature coefficient | ±100 ppm/°C | |
| Assembly | THT | |
| Enclosure | DIP-16 | |
| Width | 2.49 mm | |
| Height | 4.57 mm | |
| Power | 0.25 W | |
| Length | 21.97 mm | |
| Number of resistors | 8 | |
| Tolerance | ±2 % | |
| max. operating temperature | 125 °C | |
| ohmic resistance | 1 MΩ |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85340090 |
| MSL | MSL 1 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
