PTV111-4427A-A105 | Bourns Electronics GmbH

Carbon potentiometer, 1 MΩ, 0.05 W, logarithmisch, solder pin, PTV111-4427A-A105

Order No.: 07E6593
EAN: 4099879969637
MPN:
PTV111-4427A-A105
PTV111-4427A-A105 Bourns Electronics GmbH Potentiometers

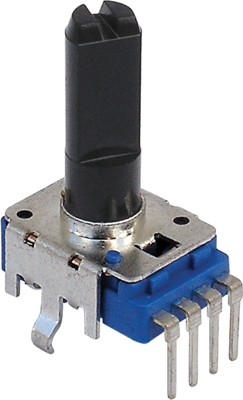

Image may differ
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,059.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.0591 €

Carbon potentiometer, PTV111-4427A-A105, Bourns

Carbon potentiometer, 1 MΩ, 0,05 W, Solder pin

Features

  • Carbon element
  • Insulated shaft
  • Snap-in clip
  • Center detent
  • Dual gang option
Technical specifications
max. number of revolutions 1
Track Taper logarithmic
Assembly straight
Mechanic rotary range 300 °
Power 0.05 W
Length 12 mm
Contact distance RM 2.5
axle diameter 6 mm
Version carbon potentiometer
min. operating temperature -10 °C
Connection solder pin
max. operating temperature 50 °C
ohmic resistance 1 MΩ
Logistics
Country of origin CN
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
