PTV111-4420A-C502 | Bourns Electronics GmbH
Carbon potentiometer, 5 kΩ, 0.05 W, logarithmisch, solder pin, PTV111-4420A-C502
Order No.: 07E6586
EAN: 4099879969569
MPN:
PTV111-4420A-C502
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 18 Weeks

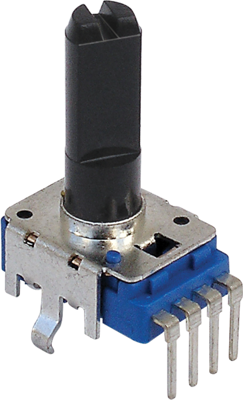

Carbon potentiometer, PTV111-4420A-C502, Bourns
Carbon potentiometer, 5 kΩ, 0,05 W, Solder pin
Features
- Carbon element
- Insulated shaft
- Snap-in clip
- Center detent
- Dual gang option
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | logarithmic | |
| Assembly | straight | |
| Mechanic rotary range | 300 ° | |
| Power | 0.05 W | |
| Length | 12 mm | |
| Contact distance | RM 2.5 | |
| axle diameter | 6 mm | |
| Version | carbon potentiometer | |
| min. operating temperature | -10 °C | |
| Connection | solder pin | |
| max. operating temperature | 50 °C | |
| ohmic resistance | 5 kΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
