PTT111-4420A-B103 | Bourns Electronics GmbH

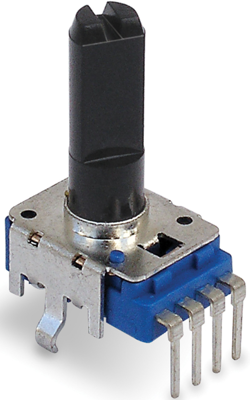

Carbon potentiometer, 10 kΩ, 0.05 W, linear, solder pin, PTT111-4420A-B103
Order No.: 07E6363
EAN: 4099879967343
MPN:
PTT111-4420A-B103
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 18 Weeks
Carbon potentiometer, PTT111-4420A-B103, Bourns Electronics GmbH
Potentiometer, snap-in clip, insulated shaft, center detent.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 300 ° | |
| Power | 0.05 W | |
| max. number of revolutions | 1 | |
| Connection | solder pin | |
| max. operating temperature | 50 °C | |
| axle diameter | 6 mm | |
| Assembly | straight | |
| min. operating temperature | -10 °C | |
| Track Taper | linear | |
| ohmic resistance | 10 kΩ | |
| Version | carbon potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 100 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
