PTT111-3415A-B502 | Bourns Electronics GmbH
Carbon potentiometer, 5 kΩ, 0.05 W, linear, solder pin, PTT111-3415A-B502
Order No.: 07E6362
EAN: 4099879967336
MPN:
PTT111-3415A-B502
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 18 Weeks

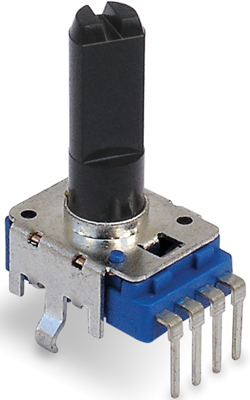

Carbon potentiometer, PTT111-3415A-B502, Bourns Electronics GmbH
Potentiometer, snap-in clip, insulated shaft, center detent.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact distance | RM 2.5 | |
| Version | carbon potentiometer | |
| ohmic resistance | 5 kΩ | |
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Connection | solder pin | |
| axle diameter | 6 mm | |
| max. operating temperature | 50 °C | |
| min. operating temperature | -10 °C | |
| Power | 0.05 W | |
| Mechanic rotary range | 300 ° | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Original Packaging | Tray with 100 pieces |
| MSL | MSL 1 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
