PTT111-3220A-B503 | Bourns Electronics GmbH

Carbon potentiometer, 50 kΩ, 0.05 W, linear, solder pin, PTT111-3220A-B503

Order No.: 07E6360
EAN: 4099879967312
MPN:
PTT111-3220A-B503
PTT111-3220A-B503 Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
1,190.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.19 €

Carbon potentiometer, PTT111-3220A-B503, Bourns Electronics GmbH

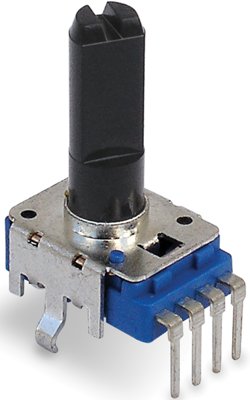

Potentiometer, snap-in clip, insulated shaft, center detent.

Technical specifications
max. number of revolutions 1
Track Taper linear
Assembly straight
Mechanic rotary range 300 °
Power 0.05 W
Contact distance RM 2.5
axle diameter 6 mm
Version carbon potentiometer
min. operating temperature -10 °C
Connection solder pin
max. operating temperature 50 °C
ohmic resistance 50 kΩ
Logistics
Country of origin CN
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
