PTR902-2015F-B102 | Bourns Electronics GmbH

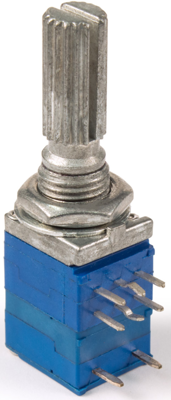

Carbon dual potentiometer with rotary switch, 1 kΩ, 0.05 W, linear, solder pin, PTR902-2015F-B102
Order No.: 07E6322
EAN: 4099879967060
MPN:
PTR902-2015F-B102
Unit Price (€ / pc.)
2.9274 € *
Available: 0 pcs.
Leadtime: 18 Weeks **
Carbon double potentiometer, PTR902-2015F-B102, Bourns Electronics GmbH
Multi-ganged potentiometer with rotary switch.
Features
- Carbon element
- Audio taper option
- RoHS compliant
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | angled | |
| Mechanic rotary range | 300 ° | |
| Power | 0.05 W | |
| Length | 15.8 mm | |
| Contact distance | RM 5/6.25 | |
| axle diameter | 6 mm | |
| Version | carbon dual potentiometer with rotary switch | |
| min. operating temperature | -10 °C | |
| Connection | solder pin | |
| max. operating temperature | 55 °C | |
| ohmic resistance | 1 kΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 108 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
