PTR902-1015F-A203 | Bourns Electronics GmbH

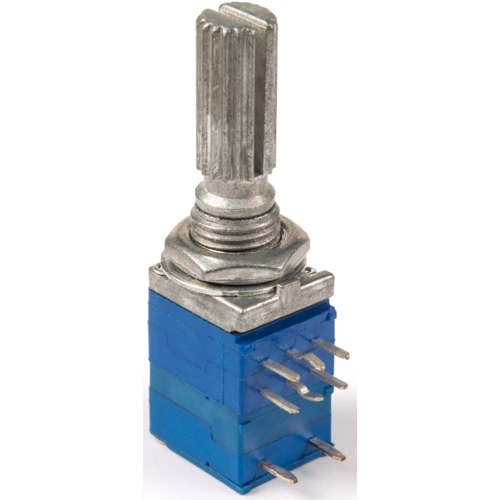

Carbon dual potentiometer with rotary switch, 20 kΩ, 0.025 W, logarithmisch, solder pin, PTR902-1015F-A203
Order No.: 07E6317
EAN: 4099879967015
MPN:
PTR902-1015F-A203
Unit Price (€ / pc.)
2.9274 € *
Standard delivery time from the manufacturer is: 18 Weeks
Carbon double potentiometer, PTR902-1015F-A203, Bourns Electronics GmbH
Multi-ganged potentiometer with rotary switch.
Features
- Carbon element
- Audio taper option
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | carbon dual potentiometer with rotary switch | |
| axle diameter | 6 mm | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 55 °C | |
| Mechanic rotary range | 300 ° | |
| ohmic resistance | 20 kΩ | |
| Power | 0.025 W | |
| Track Taper | logarithmic | |
| Length | 15.8 mm | |
| Connection | solder pin | |
| max. number of revolutions | 1 | |
| Contact distance | RM 5/6.25 | |
| Assembly | angled |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 108 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
