PTA6044-2015CPA223 | Bourns Electronics GmbH
Carbon slide potentiometer, 22 kΩ, 0.06 W, logarithmisch, solder pin, PTA6044-2015CPA223
Order No.: 07E5844
EAN: 4099879962300
MPN:
PTA6044-2015CPA223
Unit Price (€ / pc.)
1.6541 € *
Standard delivery time from the manufacturer is: 18 Weeks

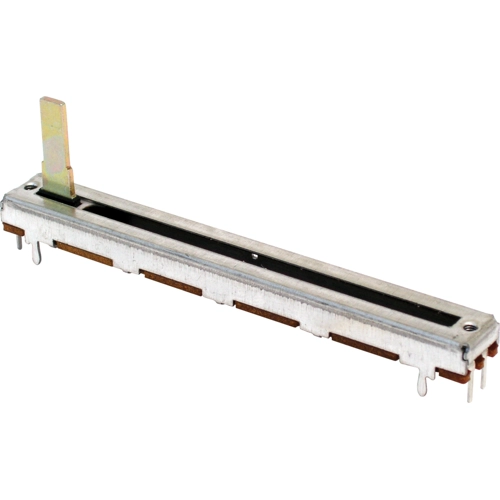

Carbon Slide Potentiometer, PTA6044-2015CPA223, Bourns
Carbon Slide Potentiometer, 22 kΩ, 0,06 W, Solder pin
Features
- Carbon element
- Metal housing
- Center detent option
- Dust cover option
- RoHS compliant
Technical specifications
| Track Taper | logarithmic | |
| Assembly | straight | |
| Width | 9 mm | |
| Power | 0.06 W | |
| Length | 75 mm | |
| Version | carbon slide potentiometer | |
| min. operating temperature | -10 °C | |
| Connection | solder pin | |
| max. operating temperature | 50 °C | |
| ohmic resistance | 22 kΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
