PRS14R-20022-503B1 | Bourns Electronics GmbH

Rotary double potentiometer with plastic shaft, 50 kΩ, 0.05 W, linear, solder pin, PRS14R-20022-503B1

Order No.: 07E8795
EAN: 4099879969927
MPN:
PRS14R-20022-503B1
PRS14R-20022-503B1 Bourns Electronics GmbH Potentiometers

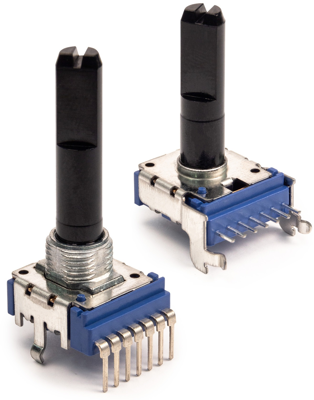

Image may differ
Unit Price (€ / pc.)
1.2733 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1,273.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.2733 €

Potentionmeter, PRS14R-20022-503B1, Bourns

The model PRS14R is designed for use in professional audio and lighting applications, low/medium risk medical and laboratory equipment, industrial automation controls and other applications where a reliable potentiometer is required. This model features a small form factor and offers a dual-potentiometric output.

Features

  • 15,000 rotational cycle rating
  • Optional center tap
  • THT mounting type
Technical specifications
max. number of revolutions 1
Track Taper linear
Assembly angled
Mechanic rotary range 300 °
Power 0.05 W
Length 14 mm
Version rotary double potentiometer with plastic shaft
min. operating temperature -10 °C
Connection solder pin
max. operating temperature 70 °C
ohmic resistance 50 kΩ
Logistics
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
