PDB241-S420K-504A2 | Bourns Electronics GmbH

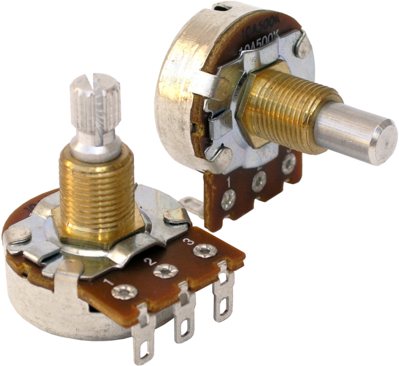

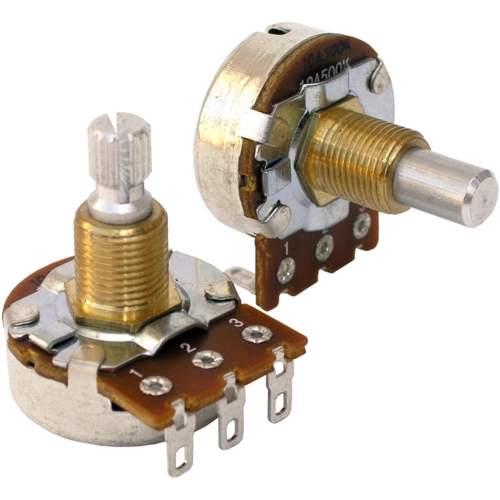

Carbon potentiometer, 500 kΩ, 0.25 W, logarithmisch, solder lug, PDB241-S420K-504A2
Order No.: 07E5662
EAN: 4099879960542
MPN:
PDB241-S420K-504A2
Unit Price (€ / pc.)
1.8088 € *
Standard delivery time from the manufacturer is: 18 Weeks
Carbon potentiometer, PDB241-S420K-504A2, Bourns
Carbon potentiometer, 500 kΩ, 0,25 W, Solder lug
Features
- High rotational life
- Metal shaft styles
- Carbon element
- RoHS compliant
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | logarithmic | |
| Assembly | straight | |
| Mechanic rotary range | 300 ° | |
| Power | 0.25 W | |
| Length | 24 mm | |
| Contact distance | RM 6.7 | |
| axle diameter | 6 mm | |
| Version | carbon potentiometer | |
| min. operating temperature | -10 °C | |
| Connection | solder lug | |
| max. operating temperature | 70 °C | |
| ohmic resistance | 500 kΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
