PDB185-GTR13-503B0 | Bourns Electronics GmbH

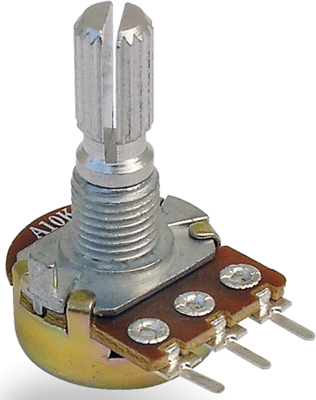

Carbon potentiometer with switch, 50 kΩ, 0.1 W, linear, solder pin, PDB185-GTR13-503B0
Order No.: 07E5572
EAN: 4099879959652
MPN:
PDB185-GTR13-503B0
Unit Price (€ / pc.)
11.424 € *
Standard delivery time from the manufacturer is: 20 Weeks
Carbon potentiometer, PDB185-GTR13-503B0, Bourns Electronics GmbH
The guitar potentiometer features a latching-push switch for added functionality.
Features
- Metal bushing and shaft
- Carbon element
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | carbon potentiometer with switch | |
| axle diameter | 6 mm | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 70 °C | |
| Mechanic rotary range | 300 ° | |
| ohmic resistance | 50 kΩ | |
| Power | 0.1 W | |
| Track Taper | linear | |
| Connection | solder pin | |
| max. number of revolutions | 1 | |
| Assembly | angled |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 1,000 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
