PDB182-GTR01-104B0 | Bourns Electronics GmbH

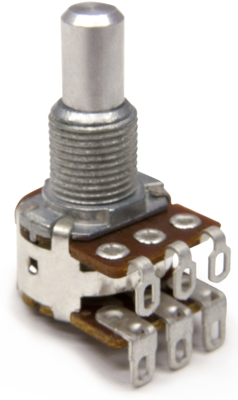

Carbon dual potentiometer, 100 kΩ, 0.125 W, linear, solder lug, PDB182-GTR01-104B0
Order No.: 07E5460
EAN: 4099879958631
MPN:
PDB182-GTR01-104B0
Unit Price (€ / pc.)
1.8445 € *
Standard delivery time from the manufacturer is: 18 Weeks
Carbon dual potentiometer, PDB182-GTR01-104B0, Bourns
Carbon dual potentiometer, 100 kΩ, 0,125 W, Solder lug
Features
- Metal shaft styles
- Carbon element
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | carbon dual potentiometer | |
| axle diameter | 6 mm | |
| min. operating temperature | -10 °C | |
| max. operating temperature | 50 °C | |
| Mechanic rotary range | 300 ° | |
| ohmic resistance | 100 kΩ | |
| Power | 0.125 W | |
| Track Taper | linear | |
| Connection | solder lug | |
| max. number of revolutions | 1 | |
| Contact distance | RM 5 | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
