96A1A-B28-A15L | Bourns Electronics GmbH

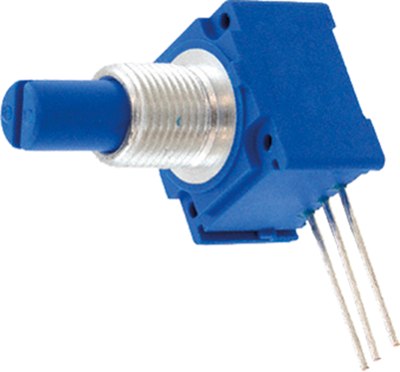

Cermet potentiometer, 10 kΩ, 2 W, linear, solder pin, 96A1A-B28-A15L
Order No.: 68E9778
EAN: 4099879972088
MPN:
96A1A-B28-A15L
Unit Price (€ / pc.)
10.2816 € *
Standard delivery time from the manufacturer is: 9 Weeks
Cermet trimmers, type Bourns 96.
Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Load rating: 2.0 W. Adjustment range: electrical 225°, mechanical 300°. Resistance tolerance: ±10 %. Operating temperatures: –40 bis 125 °C. Test voltage: 1500 VAC.
Technical attributes (type, resistance, shaft diameter, shaft length): 96A1A-B28-A15L, 10K, 6.35 mm, 22.23 mm

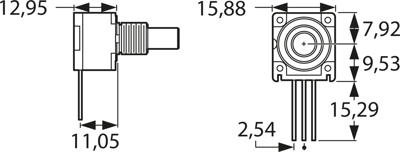

Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | angled | |
| Width | 17.45 mm | |
| Mechanic rotary range | 300 ° | |
| Power | 2 W | |
| Length | 15.88 mm | |
| axle diameter | 6.35 mm | |
| Version | cermet potentiometer | |
| min. operating temperature | -40 °C | |
| Connection | solder pin | |
| max. operating temperature | 125 °C | |
| ohmic resistance | 10 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
