95Z1D-Z33-EA0/324L | Bourns Electronics GmbH
Conductive plastic potentiometer, 500 kΩ, 0.25 W, linear, solder lug, 95Z1D-Z33-EA0/324L
Order No.: 06E7232
EAN: 4099879955074
MPN:
95Z1D-Z33-EA0/324L
Unit Price (€ / pc.)
25.2280 € *
Standard delivery time from the manufacturer is: 9 Weeks

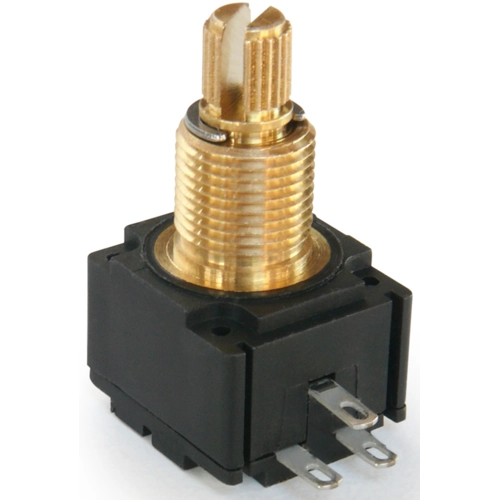

Potentiometer, 95Z1D-Z33-EA0/324L, Bourns Electronics GmbH
With its square design and single-turn functionality, this panel control provides exceptional electrical circuit isolation.
Features
- RoHS compliant
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | straight | |
| Mechanic rotary range | 300 ° | |
| Power | 0.25 W | |
| Length | 39.52 mm | |
| axle diameter | 5.97 mm | |
| Version | conductive plastic potentiometer | |
| min. operating temperature | -40 °C | |
| Connection | solder lug | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 240 ° | |
| ohmic resistance | 500 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
