95C1D-E24-L15L | Bourns Electronics GmbH

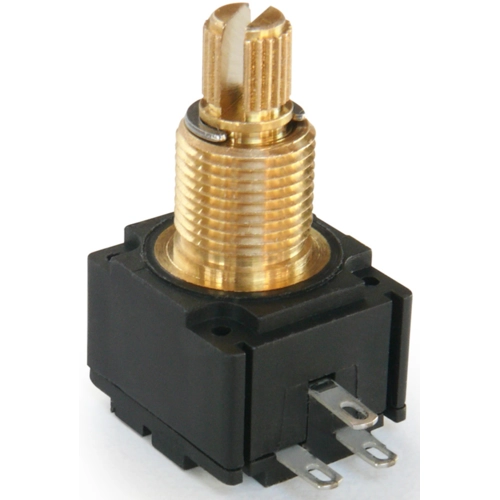

Conductive plastic potentiometer, 10 kΩ, 1 W, linear, solder lug, 95C1D-E24-L15L

Order No.: 06E7223
EAN: 4099879954985
MPN:
95C1D-E24-L15L
95C1D-E24-L15L Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
21.9198 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
5,918.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
270 pcs.
21.9198 €

Potentiometer, 95C1D-E24-L15L, Bourns Electronics GmbH

With its square design and single-turn functionality, this panel control provides exceptional electrical circuit isolation.

Features

  • RoHS compliant
Technical specifications
max. number of revolutions 1
Track Taper linear
Assembly straight
Mechanic rotary range 300 °
Power 1 W
Length 30.1 mm
axle diameter 3.18 mm
Version conductive plastic potentiometer
min. operating temperature -40 °C
Connection solder lug
max. operating temperature 125 °C
Rotary range, electrical 240 °
ohmic resistance 10 kΩ
Logistics
Country of origin MX
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 45 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
