95A1D-Z28-EA0/303L | Bourns Electronics GmbH
Conductive plastic potentiometer, 500 kΩ, 0.25 W, logarithmisch, solder lug, 95A1D-Z28-EA0/303L
Order No.: 06E7215
EAN: 4099879954909
MPN:
95A1D-Z28-EA0/303L
Unit Price (€ / pc.)
12.9472 € *
Standard delivery time from the manufacturer is: 9 Weeks

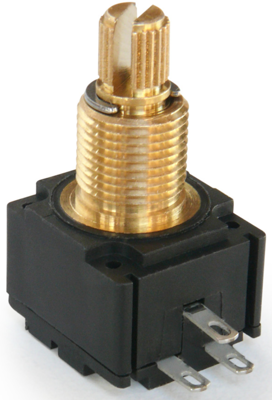

Potentiometer, 95A1D-Z28-EA0/303L, Bourns Electronics GmbH
With its square design and single-turn functionality, this panel control provides exceptional electrical circuit isolation.
Features
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 500 kΩ | |
| Mechanic rotary range | 300 ° | |
| axle diameter | 6 mm | |
| max. operating temperature | 125 °C | |
| max. number of revolutions | 1 | |
| Length | 34.93 mm | |
| Track Taper | logarithmic | |
| Connection | solder lug | |
| Power | 0.25 W | |
| min. operating temperature | -40 °C | |
| Assembly | straight | |
| Version | conductive plastic potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Tray with 45 pieces |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
