95A1D-B28-A13L | Bourns Electronics GmbH

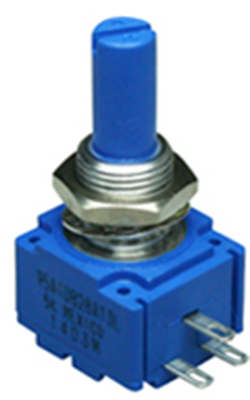

Cermet potentiometer, 5 kΩ, 2 W, linear, solder lug, 95A1D-B28-A13L
Order No.: 68E9766
EAN: 4099879972057
MPN:
95A1D-B28-A13L
Unit Price (€ / pc.)
7.1400 € *
Standard delivery time from the manufacturer is: 9 Weeks
Conductive plastic potentiometers, type Bourns Serie 91.
Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.
Cermet trimmers with solder tabs.
Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 95A1D-B28-A13L, 5K0, 6.35 mm, 22.23 mm, plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder lug | |
| Track Taper | linear | |
| Width | 17.45 mm | |
| Rotary range, electrical | 240 ° | |
| Mechanic rotary range | 300 ° | |
| Power | 2 W | |
| Length | 15.88 mm | |
| max. operating temperature | 125 °C | |
| Assembly | angled | |
| min. operating temperature | -40 °C | |
| Version | cermet potentiometer | |
| axle diameter | 6.35 mm | |
| ohmic resistance | 5 kΩ | |
| max. number of revolutions | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
