93A1A-B28-A15L | Bourns Electronics GmbH

Cermet potentiometer, 10 kΩ, 2 W, linear, solder pin, 93A1A-B28-A15L

Order No.: 68E9764
EAN: 4099879972040
MPN:
93A1A-B28-A15L
93A1A-B28-A15L Bourns Electronics GmbH Potentiometers

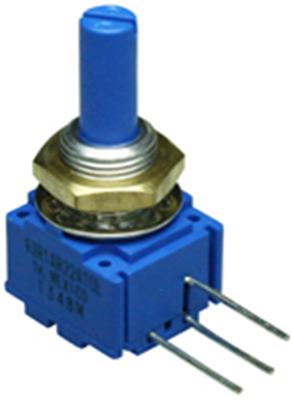

Image may differ
Unit Price (€ / pc.)
5.8548 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,580.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
270 pcs.
5.8548 €

Conductive plastic potentiometers, type Bourns Serie 91.

Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.

Cermet trimmers with solder pins in L-shape arrangement.

Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 93A1A-B28-A15L, 10K, 6.35 mm, 22.23 mm, plastic

Technical specifications
max. number of revolutions 1
Track Taper linear
Assembly angled
Width 17.45 mm
Mechanic rotary range 300 °
Power 2 W
Length 15.88 mm
axle diameter 6.35 mm
Version cermet potentiometer
min. operating temperature -40 °C
Connection solder pin
max. operating temperature 125 °C
Rotary range, electrical 240 °
ohmic resistance 10 kΩ
Logistics
Country of origin MX
Customs tariff number 85334010
MSL MSL 1
Original Packaging Tray with 45 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
