92R1A-R22-B13L | Bourns Electronics GmbH

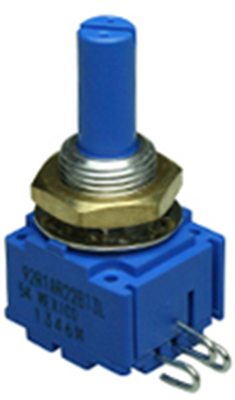

Conductive plastic potentiometer, 5 kΩ, 1 W, linear, J-hook, 92R1A-R22-B13L
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
11.6739 € *
Available: 164 pcs.
Total Price:
11.67 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6739 €
10 pcs.
10.2697 €
45 pcs.
9.6390 €
180 pcs.
9.0797 €
360 pcs.
8.7227 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive plastic potentiometers, type Bourns Serie 91.
Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.
Conductive plastic potentiometer, linear single potentiometer with J-Hook connections.
Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 92R1A-R22-B13L, 5K0, 6.0 mm, 22 mm, plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | conductive plastic potentiometer | |
| ohmic resistance | 5 kΩ | |
| Power | 1 W | |
| Assembly | angled | |
| Track Taper | linear | |
| Rotary range, electrical | 240 ° | |
| Mechanic rotary range | 300 ° | |
| max. number of revolutions | 1 | |
| axle diameter | 6 mm | |
| Connection | J-hook | |

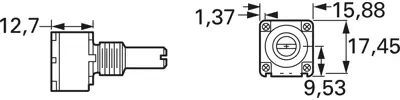

| Length | 15.88 mm | |
| Width | 17.45 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
