91A1A-B28-D18L | Bourns Electronics GmbH

Conductive plastic potentiometer, 50 kΩ, 0.5 W, logarithmisch, solder pin, 91A1A-B28-D18L

Order No.: 68E9654
EAN: 4099879971845
MPN:
91A1A-B28-D18L

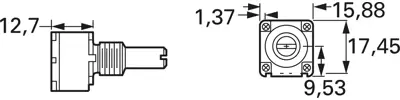

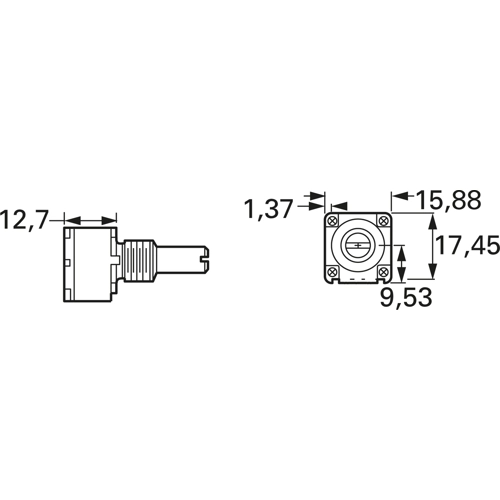

91A1A-B28-D18L Bourns Electronics GmbH Potentiometers Image 1

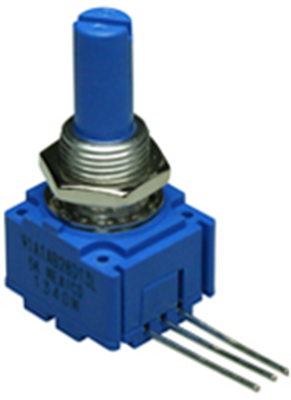

91A1A-B28-D18L Bourns Electronics GmbH Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
6.2237 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
1,680.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
270 pcs.
6.2237 €

Conductive plastic potentiometers, type Bourns Serie 91.

Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.

Conductive plastic potentiometer, logarithmic single potentiometer.

Adjustment range: electronic 225°, mechanical 300°. Resistance tolerance: ±20 %. Load rating: 0.5 W.

Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 91A1A-B28-D18L, 50K, 6.35 mm, 22.23 mm

Technical specifications
max. number of revolutions 1
Track Taper logarithmic
Assembly angled
Width 17.45 mm
Mechanic rotary range 300 °
Power 0.5 W
Length 15.88 mm
axle diameter 6.35 mm
Version conductive plastic potentiometer
min. operating temperature -40 °C
Connection solder pin
max. operating temperature 125 °C
Rotary range, electrical 240 °
ohmic resistance 50 kΩ
Logistics
Country of origin MX
Customs tariff number 85334010
Original Packaging Tray with 45 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
