91A1A-B28-D13L | Bourns Electronics GmbH

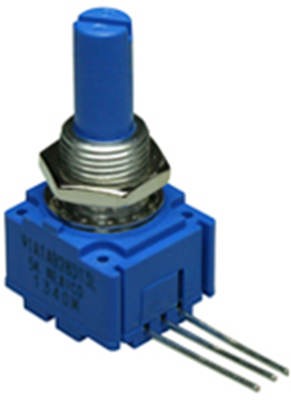

Conductive plastic potentiometer, 5 kΩ, 0.5 W, logarithmisch, solder pin, 91A1A-B28-D13L
Unit Price (€ / pc.)
8.0444 € *
Available: 27 pcs.
Total Price:
8.04 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0444 €
10 pcs.
7.0805 €
45 pcs.
6.6521 €
180 pcs.
6.2475 €
360 pcs.
6.0095 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive plastic potentiometers, type Bourns Serie 91.
Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.
Conductive plastic potentiometer, logarithmic single potentiometer.
Adjustment range: electronic 225°, mechanical 300°. Resistance tolerance: ±20 %. Load rating: 0.5 W.
Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 91A1A-B28-D13L, 5K0, 6.35 mm, 22.23 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Track Taper | logarithmic | |
| Assembly | angled | |
| Power | 0.5 W | |
| Connection | solder pin | |
| Mechanic rotary range | 300 ° | |
| max. operating temperature | 125 °C | |
| Version | conductive plastic potentiometer | |
| max. number of revolutions | 1 | |

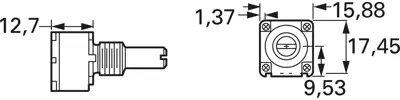

| Width | 17.45 mm | |
| ohmic resistance | 5 kΩ | |
| Rotary range, electrical | 240 ° | |
| min. operating temperature | -40 °C | |
| axle diameter | 6.35 mm | |
| Length | 15.88 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Tray with 45 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
