91A1A-B28-B23L | Bourns Electronics GmbH

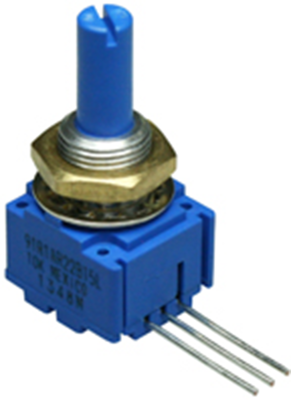

Conductive plastic potentiometer, 500 kΩ, 1 W, linear, solder pin, 91A1A-B28-B23L
Unit Price (€ / pc.)
9.9960 € *
Available: 269 pcs.
Total Price:
10.00 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9960 €
10 pcs.
7.1400 €
25 pcs.
6.1047 €
50 pcs.
5.3074 €
100 pcs.
4.8314 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive plastic potentiometers, type Bourns Serie 91.
Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.
Conductive plastic potentiometer, linear single potentiometer with solder pins.
Adjustment range: electronic 240°, mechanical 300°. Resistance tolerance: ±20 %. Load rating: 1.0 W.

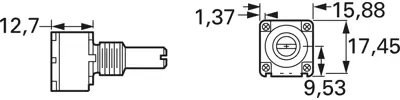

Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 91A1A-B28-B23L, 500K, 6.35 mm, 22.23 mm, plastic
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 300 ° | |
| Power | 1 W | |
| max. number of revolutions | 1 | |
| Connection | solder pin | |
| max. operating temperature | 125 °C | |
| axle diameter | 6.35 mm | |
| Rotary range, electrical | 240 ° | |
| Length | 15.88 mm | |
| Assembly | angled | |
| Width | 17.45 mm | |
| min. operating temperature | -40 °C | |
| Track Taper | linear | |
| ohmic resistance | 500 kΩ | |
| Version | conductive plastic potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Bar with 45 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
