91A1A-B28-A10L | Bourns Electronics GmbH

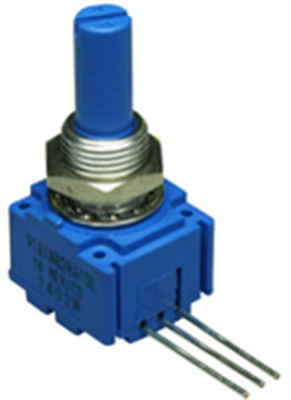

Cermet potentiometer, 1 kΩ, 2 W, linear, solder pin, 91A1A-B28-A10L
Order No.: 68E9750
EAN: 4099879971982
MPN:
91A1A-B28-A10L
Unit Price (€ / pc.)
5.7358 € *
Standard delivery time from the manufacturer is: 9 Weeks
Conductive plastic potentiometers, type Bourns Serie 91.
Single-turn; Linearity: ±5.0 %. Operating voltage: max. 350 VAC (depends on the load). Operating temperatures: –40 to 125 °C. Test voltage: 1500 VAC.
Cermet trimmers with inline solder pins.
With inline solder pins; Version: linear. Temperature coefficient: ±150. Adjustment range: electrical 240°, mechanical 300°. Resistance tolerance: ±10 %. Load rating: 2.0 W.
Technical attributes (type, resistance, shaft diameter, shaft length, shaft material): 91A1A-B28-A10L, 1K0, 6.35 mm, 22.23 mm, plastic
Technical specifications
| max. number of revolutions | 1 | |
| Track Taper | linear | |
| Assembly | angled | |
| Width | 17.45 mm | |
| Mechanic rotary range | 300 ° | |
| Power | 2 W | |
| Length | 15.88 mm | |
| axle diameter | 6.35 mm | |
| Version | cermet potentiometer | |
| min. operating temperature | -40 °C | |
| Connection | solder pin | |
| max. operating temperature | 125 °C | |
| Rotary range, electrical | 240 ° | |
| ohmic resistance | 1 kΩ |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
