6538S-1-502 | Bourns Electronics GmbH

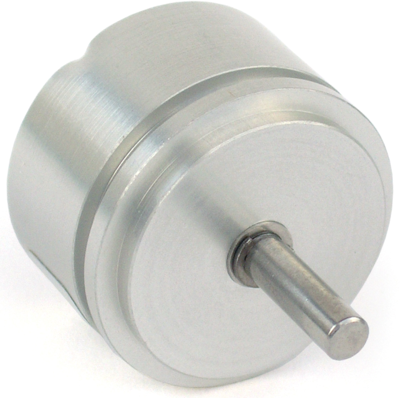

Conductive plastic potentiometer, 5 kΩ, 1 W, linear, solder lug, 6538S-1-502
Order No.: 06E6981
EAN: 4099879952837
MPN:
6538S-1-502
Unit Price (€ / pc.)
73.4706 € *
Standard delivery time from the manufacturer is: 14 Weeks
Conductive plastic potentiometer, 6538S-1-502, Bourns Electronics GmbH
The potentiometer offers precise control, with rear terminals that are molded into the design. It also features an element with infinite resolution, allowing for highly accurate adjustments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | conductive plastic potentiometer | |
| ohmic resistance | 5 kΩ | |
| Power | 1 W | |
| Assembly | straight | |
| Track Taper | linear | |
| Rotary range, electrical | 340 ° | |
| max. number of revolutions | 1 | |
| axle diameter | 3.17 mm | |
| Connection | solder lug | |
| Length | 12.7 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
