6538S-1-102 | Bourns Electronics GmbH

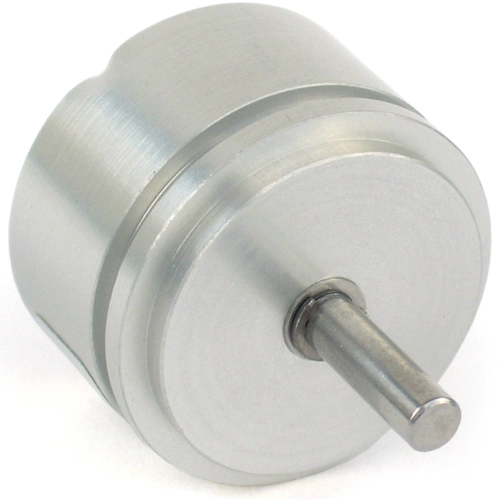

Conductive plastic potentiometer, 1 kΩ, 1 W, linear, solder lug, 6538S-1-102
Order No.: 06E6978
EAN: 4099879952806
MPN:
6538S-1-102
Unit Price (€ / pc.)
73.4706 € *
Standard delivery time from the manufacturer is: 14 Weeks
Conductive plastic potentiometer, 6538S-1-102, Bourns Electronics GmbH
The potentiometer offers precise control, with rear terminals that are molded into the design. It also features an element with infinite resolution, allowing for highly accurate adjustments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | conductive plastic potentiometer | |
| axle diameter | 3.17 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| ohmic resistance | 1 kΩ | |
| Power | 1 W | |
| Track Taper | linear | |
| Length | 12.7 mm | |
| Connection | solder lug | |
| max. number of revolutions | 1 | |
| Rotary range, electrical | 340 ° | |
| Assembly | straight |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
