6537S-1-502 | Bourns Electronics GmbH

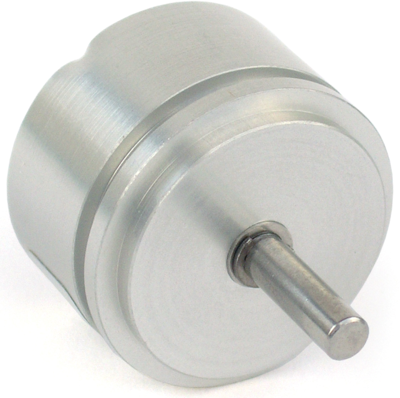

Conductive plastic potentiometer, 5 kΩ, 1 W, linear, solder lug, 6537S-1-502
Order No.: 06E6977
EAN: 4099879952790
MPN:
6537S-1-502
Unit Price (€ / pc.)
57.834 € *
Standard delivery time from the manufacturer is: 11 Weeks
Conductive plastic potentiometer, 6537S-1-502, Bourns Electronics GmbH
The potentiometer offers precise control, with rear terminals that are molded into the design. It also features an element with infinite resolution, allowing for highly accurate adjustments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 1 W | |
| max. number of revolutions | 1 | |
| Connection | solder lug | |
| max. operating temperature | 125 °C | |
| axle diameter | 3.17 mm | |
| Rotary range, electrical | 340 ° | |
| Length | 12.7 mm | |
| Assembly | straight | |
| min. operating temperature | -40 °C | |
| Track Taper | linear | |
| ohmic resistance | 5 kΩ | |
| Version | conductive plastic potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Tray with 10 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
