56AAD-C28-B15/R81L | Bourns Electronics GmbH

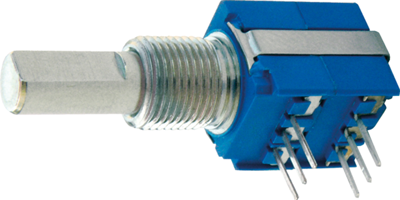

Conductive plastic potentiometer with switch, 10 kΩ, 0.5 W, linear, solder pin, 56AAD-C28-B15/R81L
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
22.7647 € *
Available: 6 pcs.
Total Price:
22.76 € *
Price list
Quantity
Price per unit*
1 pcs.
22.7647 €
10 pcs.
20.0277 €
45 pcs.
18.7901 €
180 pcs.
17.7072 €
360 pcs.
17.0170 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive plastic potentiometers, with switch, type Bourns 56.
With single-pole CO switch; Version:: linear. Linearity: ±5.0 %. Load rating: 0.5 W at +70 °C. Operating temperatures: +1.0 bis +125 °C. Test voltage: 1500 VAC. Adjustment range: electrical 240°, mechanical 290° (±5.0° each). Temperature coefficient: ±1000. Resistance tolerance: ±20 %.

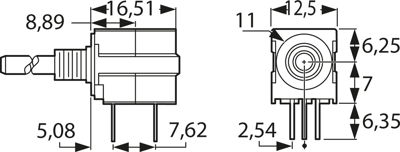

Type: 56AAD-C28-B15/R81L, 10K, 6.35 mm, 22.23 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | conductive plastic potentiometer with switch | |
| ohmic resistance | 10 kΩ | |
| Power | 0.5 W | |
| Assembly | angled | |
| Track Taper | linear | |
| Rotary range, electrical | 270 ° | |
| Mechanic rotary range | 290 ° | |
| max. number of revolutions | 1 | |
| axle diameter | 6.35 mm | |
| Connection | solder pin | |
| Length | 12.5 mm | |
| Width | 13.25 mm | |
| min. operating temperature | 1 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Tray with 45 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
