54CAD-E28-B15/P50L | Bourns Electronics GmbH

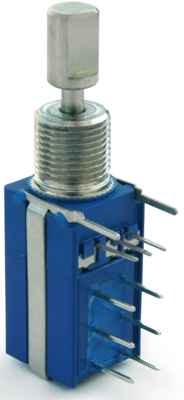

Conductive plastic potentiometer, 10 kΩ, 0.5 W, linear, solder pin, 54CAD-E28-B15/P50L
Order No.: 06E6966
EAN: 4099879952684
MPN:
54CAD-E28-B15/P50L
Unit Price (€ / pc.)
23.9666 € *
Standard delivery time from the manufacturer is: 16 Weeks
Potentiometer, 54CAD-E28-B15/P50L, Bourns Electronics GmbH
Panel control with Push-Pull switch.
Features
- Splash seal
- Metal bushing and shaft
- RoHS compliant
Applications
- Test and measurement equipment
- Communications equipment
- Medical diagnostic equipment
- Professional audio equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 290 ° | |
| Power | 0.5 W | |
| max. number of revolutions | 1 | |
| Connection | solder pin | |
| max. operating temperature | 125 °C | |
| axle diameter | 3.18 mm | |
| Rotary range, electrical | 270 ° | |
| Length | 24.13 mm | |
| Assembly | angled | |
| min. operating temperature | 1 °C | |
| Track Taper | linear | |
| ohmic resistance | 10 kΩ | |
| Version | conductive plastic potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Tray with 45 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
