54AAD-B28-B15/P50L | Bourns Electronics GmbH

Conductive plastic potentiometer with switch, 10 kΩ, 0.5 W, linear, solder pin, 54AAD-B28-B15/P50L

Order No.: 68E9436
EAN: 4099879971623
MPN:
54AAD-B28-B15/P50L

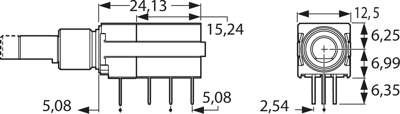

54AAD-B28-B15/P50L Bourns Electronics GmbH Potentiometers Image 1

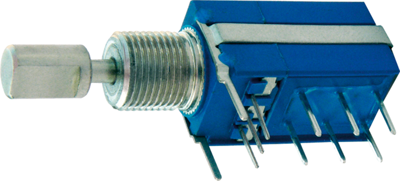

54AAD-B28-B15/P50L Bourns Electronics GmbH Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
23.9666 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
6,470.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
270 pcs.
23.9666 €

Conductive plastic potentiometers, with switch, type Bourns 54.

With 2-pole CO switch; Version: linear. Linearity: ±5.0 %. Load rating: 0.5 W at +70 °C. Operating temperatures: +1.0 bis +125 °C. Test voltage: 1500 VAC. Adjustment range: electrical 270°, mechanical 290° (±5.0° each). Temperature coefficient: ±1000.

Technical attributes (type, resistance, shaft diameter, shaft length, resistance tolerance): 54AAD–B28–B15/P50L. 10K, 6.35 mm, 22.23 mm, ±20 %

Technical specifications
max. number of revolutions 1
Track Taper linear
Assembly angled
Width 13.5 mm
Mechanic rotary range 290 °
Power 0.5 W
Length 12.5 mm
axle diameter 6.35 mm
Version conductive plastic potentiometer with switch
min. operating temperature 1 °C
Connection solder pin
max. operating temperature 125 °C
Rotary range, electrical 270 °
ohmic resistance 10 kΩ
Logistics
Country of origin MX
Customs tariff number 85334010
Original Packaging Tray with 45 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
