53RAD-R22-B15L | Bourns Electronics GmbH

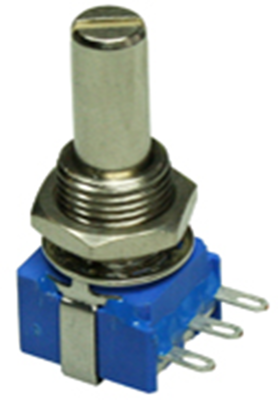

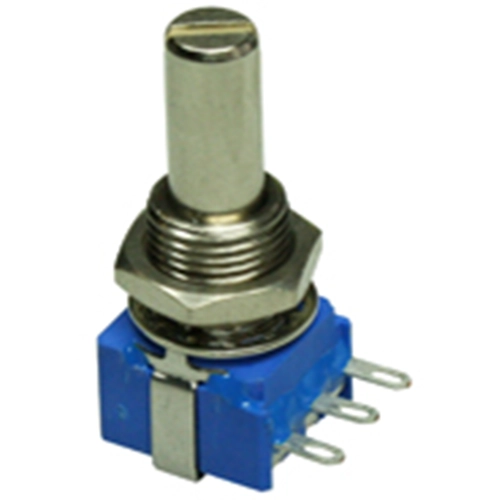

Conductive plastic potentiometer, 10 kΩ, 0.5 W, linear, solder lug, 53RAD-R22-B15L
Unit Price (€ / pc.)
12.6497 € *
Available: 180 pcs.
Next delivery: 495 pcs. on 2025-12-01
Total Price:
12.65 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6497 €
10 pcs.
9.0321 €
100 pcs.
7.7231 €
500 pcs.
6.7116 €
1000 pcs.
6.1047 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive plastic potentiometers, type Bourns Serie 50.
Design: models 51 and 53 with solder pins or solder tabs on the side, depending on the type. Version: linear. Linearity: ±5.0 %. Operating temperatures: +1.0 to +125 °C. Test voltage: 1500 VAC. Adjustment range: electrical 270°, mechanical 290° (±5.0° each).
Conductive plastic potentiometers with solder tabs.
Resistance tolerance: ±20 %. Temperature coefficient: ±1000. Power: 0.5 W.

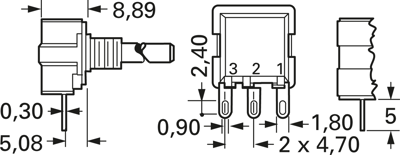

Technical attributes (type, resistance, shaft diameter, shaft length): 53RAD-R22-B15L, 10K, 6.0 mm, 22 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Track Taper | linear | |
| Assembly | straight | |
| Power | 0.5 W | |
| Connection | solder lug | |
| Mechanic rotary range | 290 ° | |
| max. operating temperature | 125 °C | |
| Version | conductive plastic potentiometer | |
| max. number of revolutions | 1 | |
| Width | 13.5 mm | |
| ohmic resistance | 10 kΩ | |
| Rotary range, electrical | 270 ° | |
| min. operating temperature | 1 °C | |
| axle diameter | 6 mm | |
| Length | 12.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Bar with 45 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
